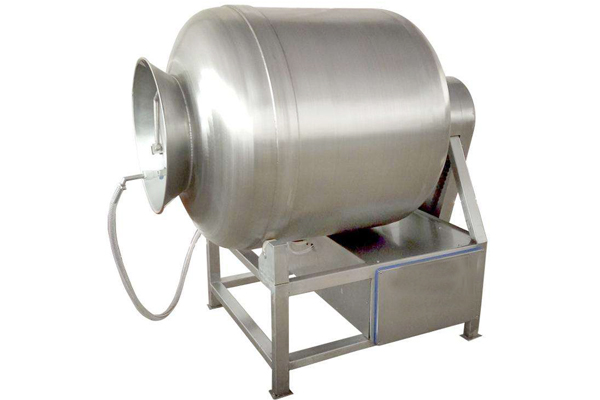

Roll kneading machine
Auther：371
Pubdate：2019-12-28 03:40:32
I plant production of roll kneading machine all adopt high quality stainless steel, the production process does not produce metal contamination, and corrosion resistance, a good operating system, roll kneading machine material inside the drum inside turn, uniform absorption pickled meat in the cylinder, improves the flesh of the relay and the flexibility of meat, I plant production of roll kneading machine has lung respiratory function, using the comparison of advanced manufacturing technology and materials, has the frequency conversion, automation, adjustable speed a bit. Vacuum setting is adopted in the barrel, and the meat material is reversed and massaged in the vacuum equipment. The blades are v-shaped. In the process of meat mixing, it can effectively shorten rolling time and improve efficiency.
Working principle of hydraulic roller kneading machine:
The hydraulic roller kneading machine adopts variable frequency stepless speed regulation with a speed range of 3-12 RPM (1-4 RPM low-speed function can be selected). Stable start, reduce the impact of machine start, prolong the service life of equipment. Specially equipped with auxiliary vacuum straws. PLC (optional) and touch screen control can be used to divide the total working time into up to six process cycles, each process cycle is divided into two steps, each step separately set time, speed, vacuum state, turn. Meet the processing requirements of diversified products. High standards of hygiene design. The whole machine adopts SUS304 high quality stainless steel material; Roll knead barrel internal fine polishing, no sanitary corner, unloading position can be completely drainage. Optional "v-shaped" and "one-piece" blades with different rolling strength to suit different products.
Classification:
Rolling kneading machine classification can be divided into; Vacuum rolling kneading machine, self-suction vacuum rolling kneading machine, automatic vacuum rolling kneading machine, side mouth vacuum rolling kneading machine, no vacuum rolling kneading machine, variable frequency vacuum rolling kneading machine, etc.
Other similar types of equipment are: vacuum curing machine, curing can, curing bucket and other equipment.
Frequency conversion vacuum rolling kneading machine add frequency converter, increase speed regulation function, change the original single fixed revolution, make rolling kneading revolution can be adjusted according to the process.
Automatic hydraulic vacuum roller kneading machine (automatic feeding, automatic opening cover, automatic discharging).
Automatic hydraulic vacuum roller kneading machine, PLC control, truly realize the automation of the production process.
